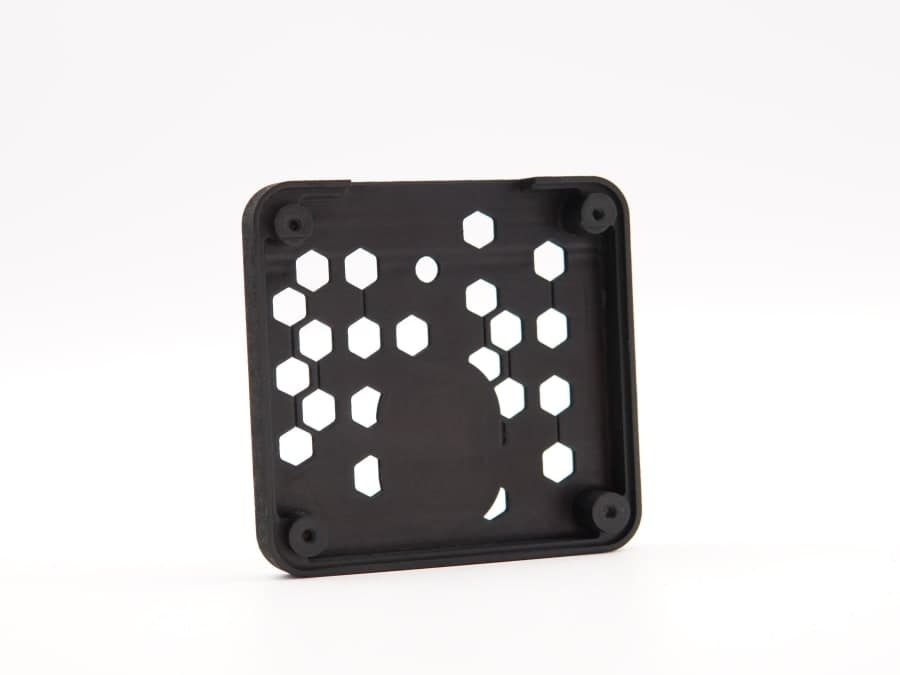

VisiJet® M2S-HT90

Functional Resins

Heat resistantSmoothBiomedicalFunctional

VisiJet® M2S-HT90 has a HDT of 90 °C along with excellent humidity/moisture resistance. With a smooth surface and possibility to be watertight, the material is ideal for functional testing in warm environments such as gasses flow analysis. It is capable of meeting USP Class VI standards for biocompatibility upon special request.

Print with VisiJet® M2S-HT90

Mechanical Properties

Tensile strength49–76 MPa

Tensile modulus2500–3000 MPa

Elongation4–9 %

Flexural strength105–120 MPa

Flexural modulus2600–3000 MPa

Density1.15 g/cm³

Thermal

Heat deflection at 66 PSI90–100 °C

Heat deflection at 264 PSI80–90 °C

Print Constraints

Default layer height0.05 mm

Default infill100%

Min embossing0.2 mm

Min engraving0.2 mm

Accuracy± 0.2 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard Smooth

2 colors

Standard printed resin with a smooth surface.
