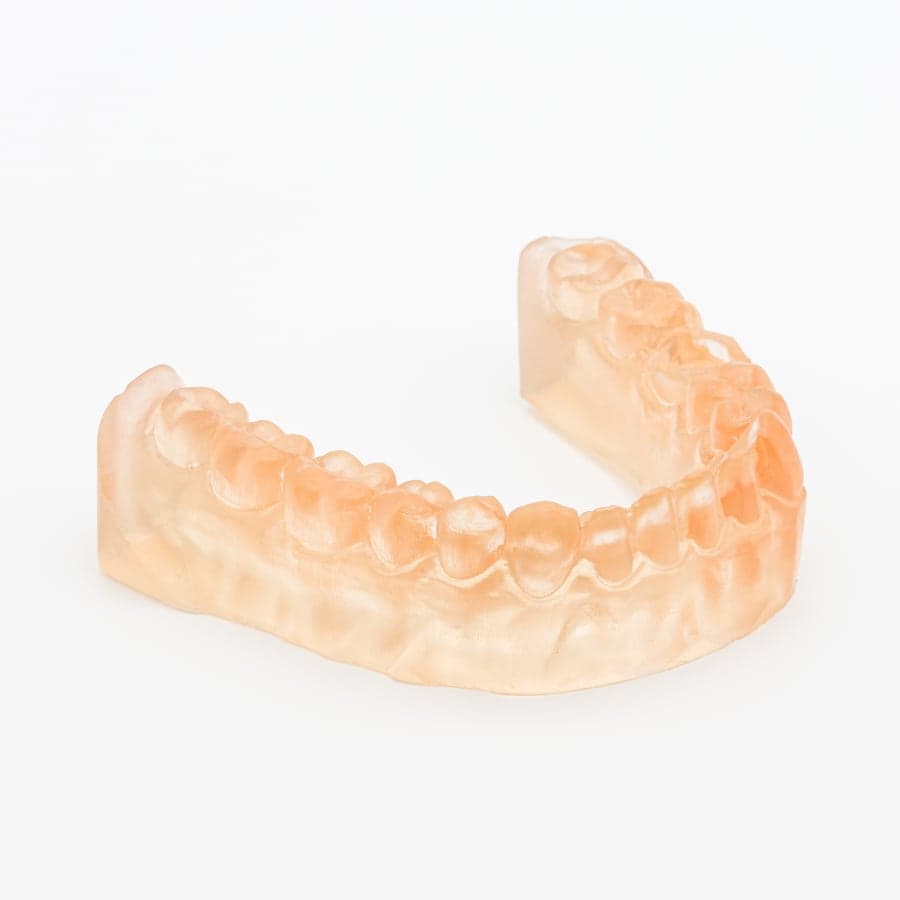

Surgical Guide Resin

Functional Resins

BiomedicalSmoothFunctionalTransparent

Surgical guide resin is a biocompatible photopolymer resin made of a mixture of methacrylic esters and photo-initiators. It is non-cytotoxic, not a sensitizer, non-irritating, and it complies with ISO 10993-1:2018. It is commonly used for prototyping surgical guides, pilot drill guides, and drilling templates.

Print with Surgical Guide Resin

Mechanical Properties

Tensile strength50–73 MPa

Tensile modulus2000–2900 MPa

Elongation4–12 %

Flexural strength80–110 MPa

Flexural modulus2000–2500 MPa

Density1.12 g/cm³

Thermal

Heat deflection at 66 PSI70–80 °C

Print Constraints

Maximum build volume

200 × 125 × 210 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.3 mm

Min engraving0.3 mm

Accuracy± 0.1 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

2 colors

Surgical Guide Resin has a relatively smooth surface and results in high quality and accurate parts
