Standard Resin

Prototyping Resins

High detailVisualSmooth

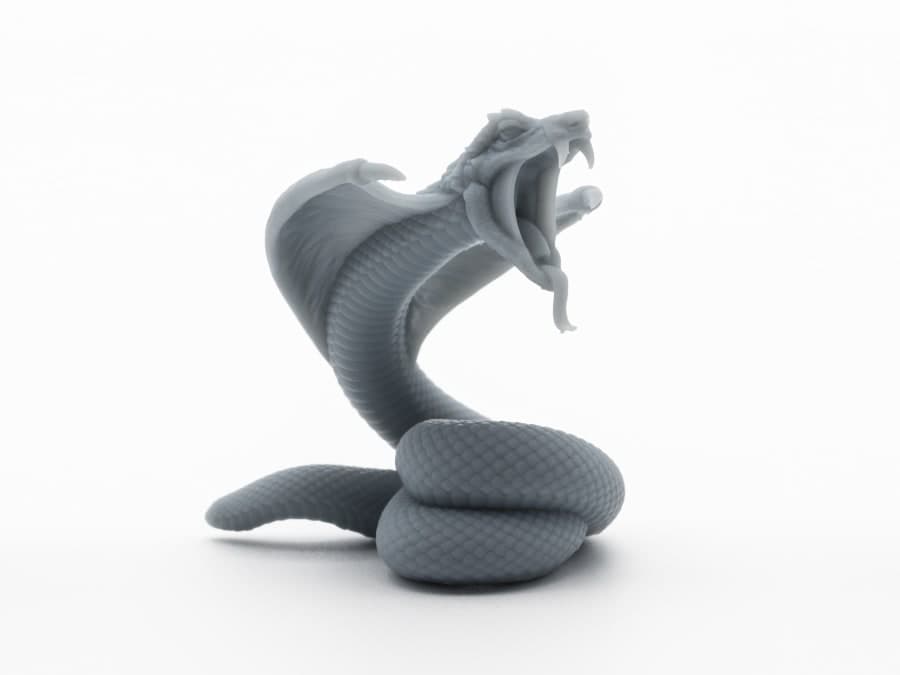

Resin is ideal for display objects, such as visual prototypes, models, or figurines, as it is capable of delivering fine details and a smooth surface. This photopolymer transforms from liquid to solid after precise exposure to UV light during the printing process.

Print with Standard Resin

Mechanical Properties

Tensile strength32–86 MPa

Tensile modulus1650–2800 MPa

Elongation7–9 %

Flexural strength51–93 MPa

Flexural modulus2200–2775 MPa

Density1.2 g/cm³

Thermal

Heat deflection at 66 PSI48–70 °C

Heat deflection at 264 PSI40–58 °C

Print Constraints

Maximum build volume

3500 × 3500 × 5000 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskModerate

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

56 colors

Solid Resin, smooth surface with a good level of detail.

Matte

12 colors

Smooth texture with a Matte surface finish.

Glossy

12 colors

Smooth texture with a Glossy surface finish.

Electroplated

4 colors

Electroplating is a process where a thin layer of metal is applied to plastic surfaces to enhance durability, corrosion resistance, and electrical conductivity.

Electroplated Colored

5 colors

The finish provides a glossy, metallic appearance with vibrant colors, offering enhanced durability, corrosion resistance, and aesthetic appeal for decorative and functional parts.
