SLS Nylon PA11-ESD

Nylons

FunctionalDurableImpact resistantVisual

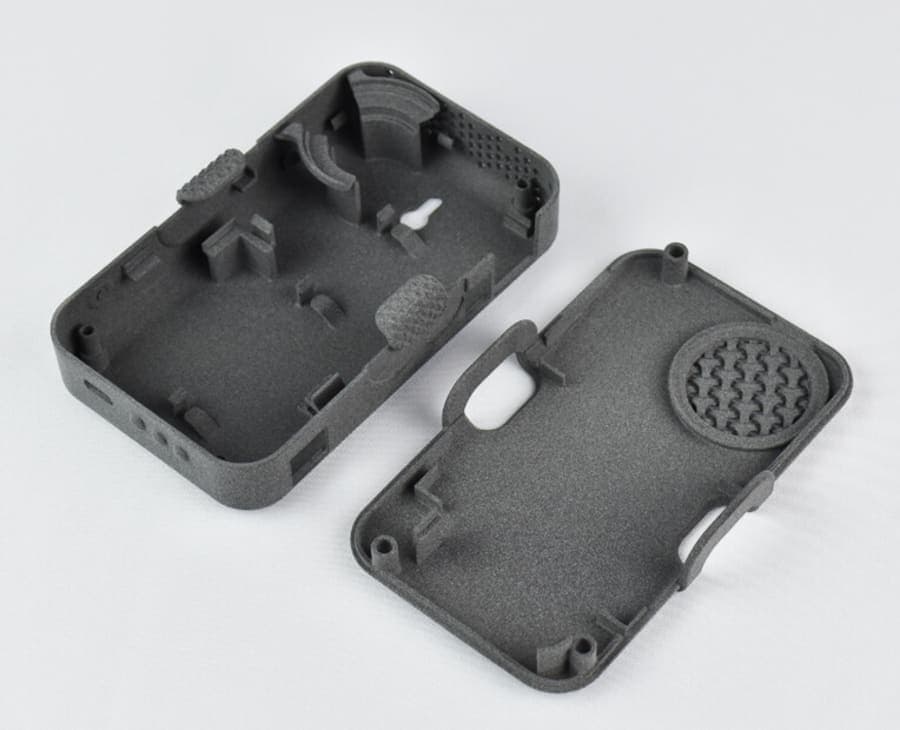

PA11 ESD allows you to handle your electronic components with a higher level of safety, as the material does not accumulate static electricity and can come in contact with electronic components without running the risk of damaging them. It is suitable material to produce durable jigs, fixtures and housings for the electronics industry.

Print with SLS Nylon PA11-ESD

Mechanical Properties

Tensile strength65 MPa

Tensile modulus3150 MPa

Elongation20–31 %

Flexural strength56 MPa

Flexural modulus1240–3050 MPa

Density1.03 g/cm³

Thermal

Heat deflection at 66 PSI172–186 °C

Heat deflection at 264 PSI111 °C

Print Constraints

Maximum build volume

350 × 350 × 350 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.4 mm

Warping riskN/A

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

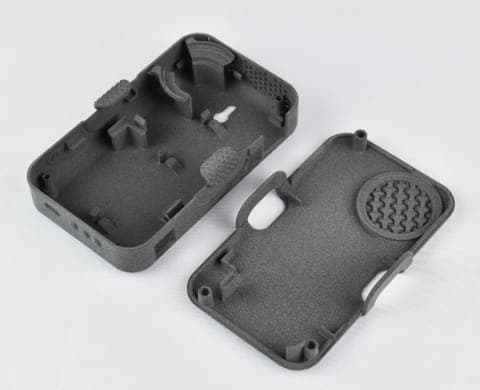

Standard

1 color

Raw SLS Nylon featuring a coarse surface.
