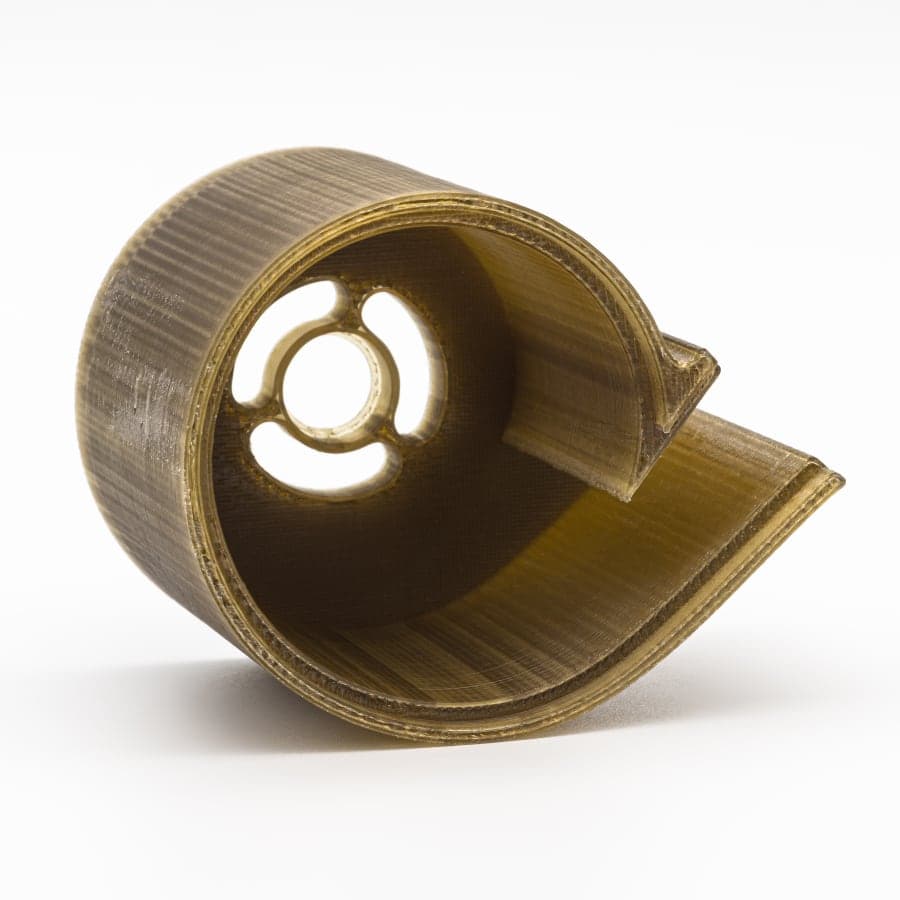

PEEK

Engineering Plastics

Chemical resistantHeat resistantImpact resistantWear resistant

PEEK is an organic thermoplastic polymer that has an intriguing combination of mechanical properties, including high-temperature performance, mechanical strength, and excellent chemical resistance. The material is highly resistant to extreme temperatures, remaining strong up to 140-150°C, as well as to corrosive fluids, gasses, and high pressure. The material is widely used in the medical, automotive, and aerospace industries.

Print with PEEK

Mechanical Properties

Tensile strength98–100 MPa

Tensile modulus3720–3738 MPa

Elongation28–40 %

Flexural strength130–170 MPa

Flexural modulus2700–4200 MPa

Density1.3 g/cm³

Thermal

Heat deflection at 66 PSI140–152 °C

Print Constraints

Maximum build volume

500 × 500 × 700 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.3 mm

Warping riskHigh

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered finish in solid beige.

Sanded

1 color

Smooth sanded finish in solid beige.
