PCTG

PCTG

Standard Plastics
FunctionalChemical resistantStrongWater resistant

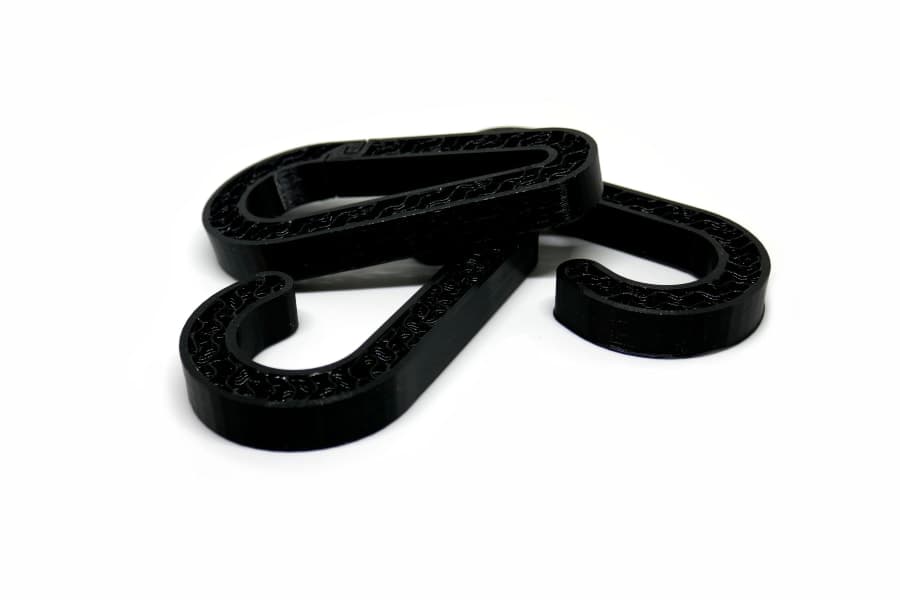

PCTG (Poly – Cyclohexylenedimethylene Terephthalate Glycol) is a thermoplastic polyester that offers a good balance of strength, durability, chemical resistance, and food safety compliance. Its ease of printing and good mechanical properties make it suitable for a wide range of functional and aesthetic applications. One of the significant advantages of PCTG filament is its compliance with FDA regulations for food contact. It is considered food-safe and can be used to print objects that come into contact with food and beverages. Please be aware that while the material is food-safe, the FDM printing process is not. PCTG has a low tendency to warp or shrink during the printing process, making it easier to achieve accurate and consistent prints. It exhibits excellent mechanical properties, including high tensile strength and impact resistance, which makes it suitable for functional prints that require strength and durability. It further has good chemical resistance, making it resistant to a wide range of chemicals, oils, and solvents. PCTG has a lower glass transition temperature (Tg) compared to materials like ABS or Polycarbonate, limiting its use in high-temperature environments.

Print with PCTG
Mechanical Properties
Tensile strength45–65 MPa
Tensile modulus1800–2300 MPa
Elongation3–5 %
Flexural strength65–75 MPa
Flexural modulus2000–2500 MPa
Density1.23 g/cm³
Thermal
Heat deflection at 66 PSI65–80 °C
Heat deflection at 264 PSI55–70 °C
Print Constraints

Maximum build volume

601 × 601 × 601 mm

Default layer height0.2 mm
Default infill20%
Min embossing0.3 mm
Min engraving0.3 mm
Accuracy± 0.3 mm
Warping riskLow
Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

Standard

27 colors

Standard layered finish.

Sanded

Sanded

27 colors

Smooth sanded finish.
