PC/PTFE

Engineering Plastics

DurableHeat resistantImpact resistantStrong

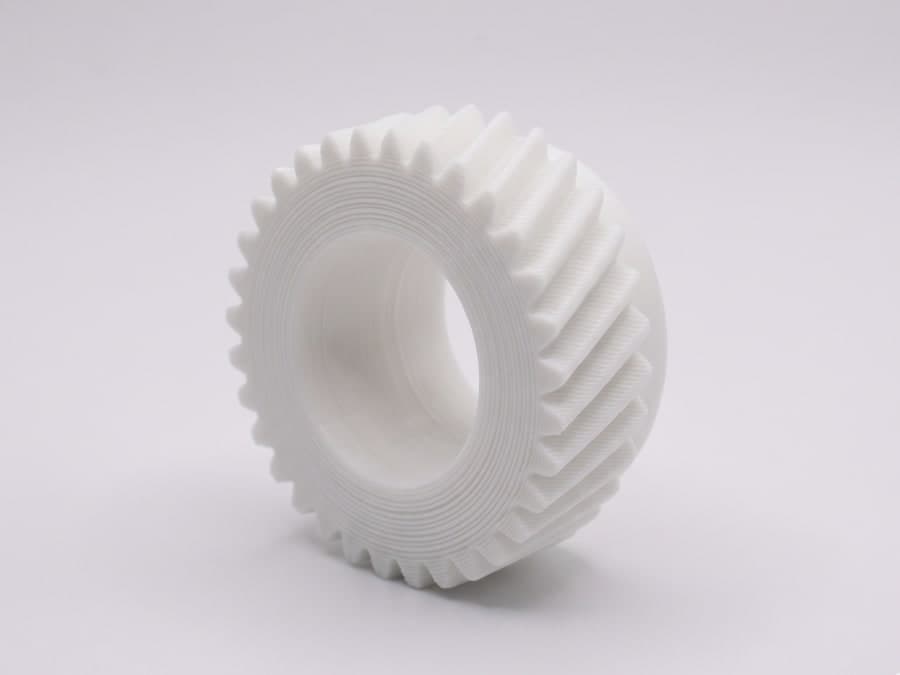

PC/PTFE is a high-performance polycarbonate-based composite designed to bridge the gap between structural strength and surface functionality. By integrating PTFE, this material achieves significantly reduced wear and friction while maintaining the high mechanical resistance of PC. It features low linear processing shrinkage (0.6%) and very strong interlayer lamination. This makes it a premier choice for manufacturing functional mechanical components, such as bearings, gears, and sliding elements that require high heat resistance and durability.

Print with PC/PTFE

Mechanical Properties

Tensile strength55 MPa

Tensile modulus2200 MPa

Elongation3–8 %

Density1.32 g/cm³

Print Constraints

Default layer height0.2 mm

Default infill20%

Min embossing0.4 mm

Min engraving0.4 mm

Accuracy± 0.3 mm

Warping riskLow

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

As printed PC/PTFE parts feature a technical, matte texture with visible layer lines.
