MBJ 316L Steel

Steels

Heat resistantStrongChemical resistantCorrosion resistant

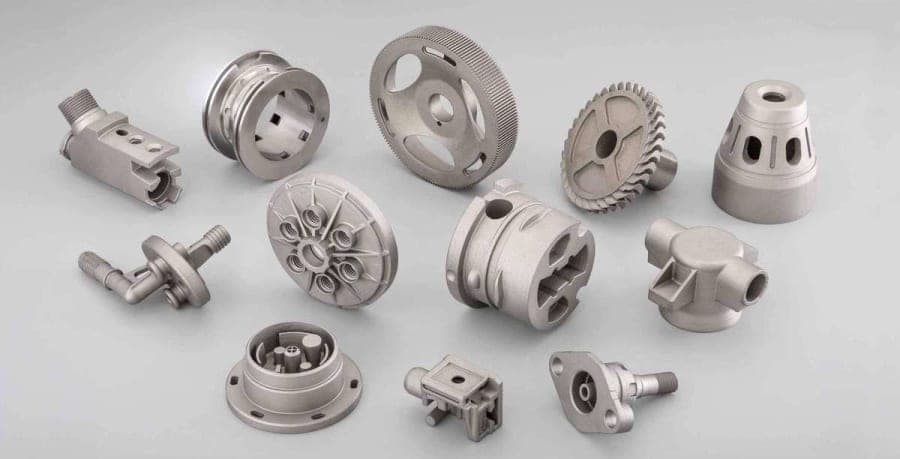

Metal Binder Jetting (MBJ) printed 316L stainless steel combines the inherent strengths of 316L stainless steel with the unique capabilities of MBJ technology. 316L is known for its excellent corrosion resistance, making it ideal for harsh environments. The MBJ technology can create complex geometries with more design freedom than traditional manufacturing methods. The MBJ printed parts have good mechanical properties, yet they do not match the density and strength of parts made through methods like DMLS/SLM. The surface finish of MBJ printed parts is not as smooth as with other methods. Still, MBJ-printed 316L steel is a robust choice for applications needing a balance of corrosion resistance, strength, and complex geometries.

Print with MBJ 316L Steel

Mechanical Properties

Tensile strength550–700 MPa

Tensile modulus190000–200000 MPa

Elongation20–40 %

Flexural modulus190000–200000 MPa

Density7.9 g/cm³

Print Constraints

Maximum build volume

430 × 300 × 140 mm

Default layer height0.2 mm

Min embossing0.8 mm

Min engraving0.8 mm

Accuracy± 0.5 mm

Warping riskOver_140_mm

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard Sintered

1 color

Sintering is the standard post-processing for any MBJ printed parts.

Polished

1 color

Polished through a mechanical process.

Sandblasted Matte

1 color

A uniform matte surface created by sandblasting, reducing reflections and providing a consistent, tactile finish for MBJ 316L stainless steel parts.
