Markforged® Inconel 625

Alloys

Heat resistantChemical resistantDurableCorrosion resistant

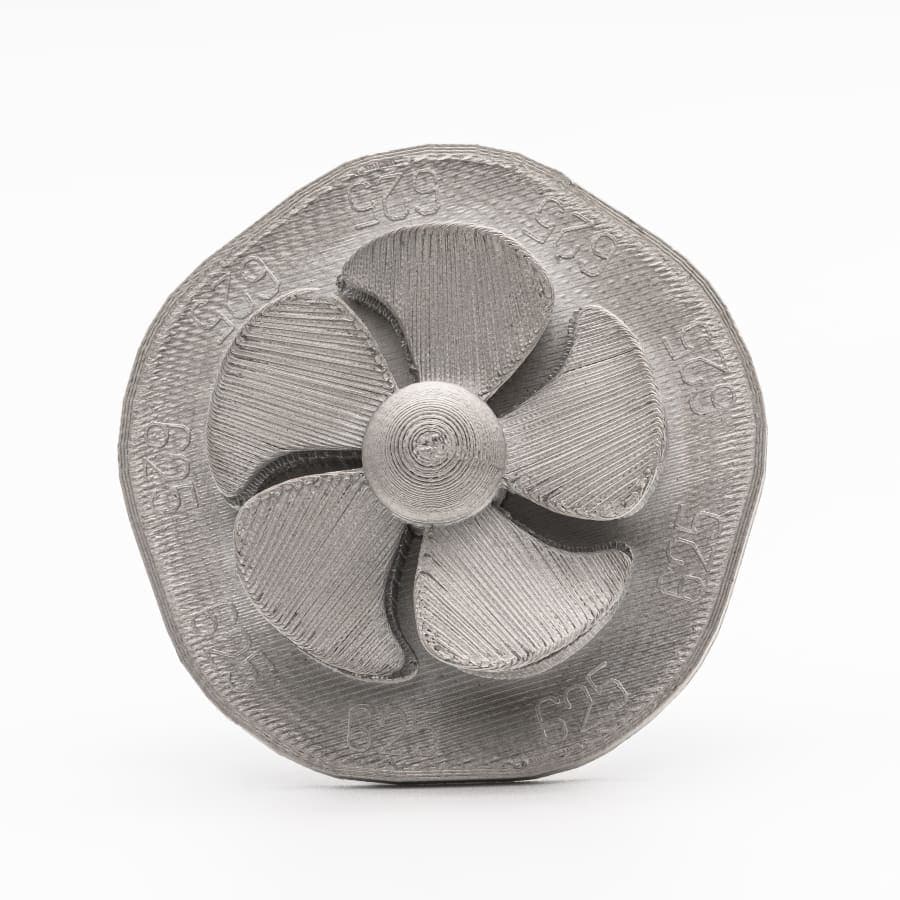

Printing with Inconel 625 allows the fabrication of functional prototypes and end-use parts that are designed for harsh environments. The material meets chemical requirements of ASTM B443 and maintains a UTS of 500 MPa at 600 ºC. Inconel 625 showcases extraordinary resistance to sodium chloride at a variety of temperatures. The material is perfect for wire rope and propeller blades that are used in underwater applications. Along with this, the material can be used for crucibles, high temperature fixtures, and more.

Print with Markforged® Inconel 625

Mechanical Properties

Tensile strength765–827 MPa

Tensile modulus150000–211000 MPa

Elongation30–42 %

Density8.5 g/cm³

Print Constraints

Maximum build volume

100 × 100 × 100 mm

Default layer height0.125 mm

Default infill20%

Min embossing1 mm

Min engraving1 mm

Accuracy± 0.5 mm

Warping riskHigh

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Sintered

1 color

Markforged Inconel 625 is a nickel-chromium based superalloy that is extremely resistant to corrosion and strong at high temperatures.
