HP® 3D HR PA 11

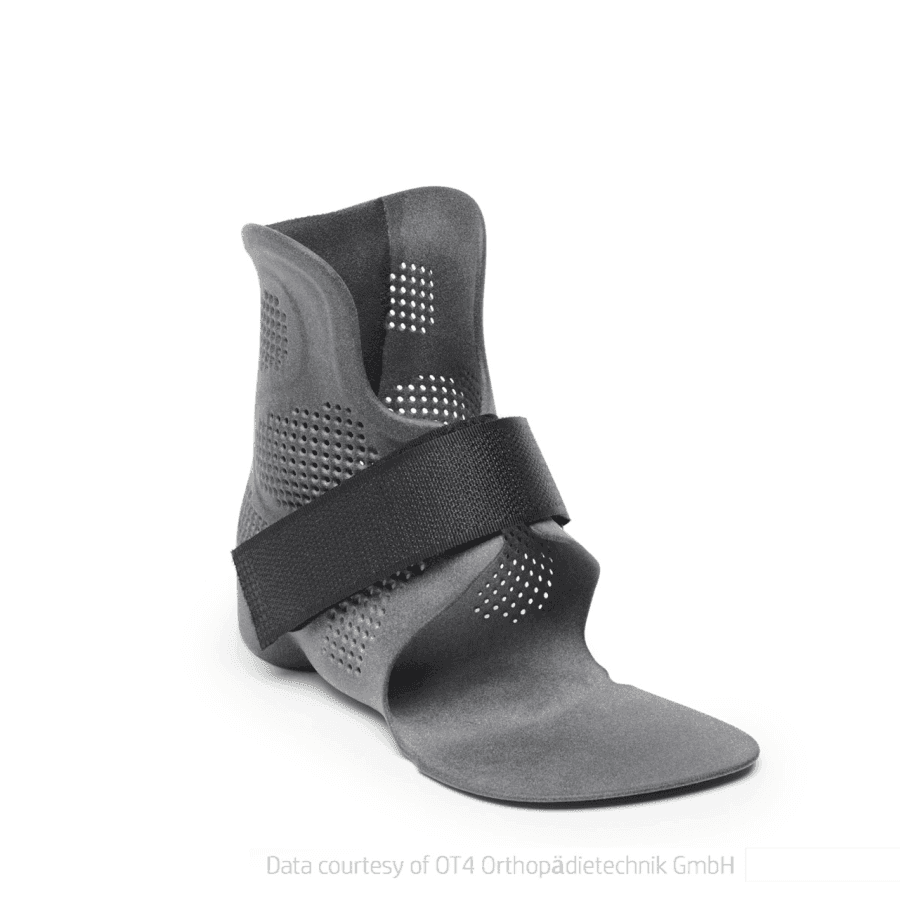

PA 11 (HP 3D High Reusability PA 11) is a bio-derived material made from renewable castor oil with exceptionally high toughness. It is ideal for producing durable, flexible parts that must withstand repeated stress and impact. Common applications include snap-fits, living hinges, sports equipment, prosthetics, and functional prototypes for automotive or industrial use. Its high elongation and strength make it well-suited for parts exposed to demanding mechanical conditions.

Print with HP® 3D HR PA 11

Mechanical Properties

Tensile strength50–58 MPa

Tensile modulus1500–2200 MPa

Elongation35–50 %

Flexural strength70 MPa

Flexural modulus1800 MPa

Density1.05 g/cm³

Thermal

Heat deflection at 66 PSI

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

19 colors

Standard Nylon PA 11 featuring a coarse texture.

Electroplated

8 colors

Electroplated MJF PA 11 parts feature a thin metal coating that enhances durability, corrosion resistance, and electrical conductivity while giving the nylon base a smooth, metallic finish.

All materials

Print Constraints

Maximum build volume

380 × 380 × 380 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.8 mm

Min engraving0.8 mm

Accuracy± 0.3 mm

Warping riskLow

Interlocking partsSupported

Polished

19 colors

Polished PA 11 parts feature a smooth, refined surface with reduced graininess compared to standard prints. The process enhances appearance and touch while retaining the material’s toughness and flexibility.

Shot Peened

19 colors

Shot peened PA 11 parts have a denser, smoother surface achieved by blasting fine media against the nylon. The finish improves fatigue resistance, reduces porosity, and gives the part a uniform matte look.

Vapor Smoothed

19 colors

Vapor smoothed PA 11 parts have a sealed, glossy surface with reduced porosity. The process enhances aesthetics, improves cleanability, and increases resistance to moisture and dirt while maintaining mechanical strength.
