High-Detail Resin

Prototyping Resins

High detailVisualSmooth

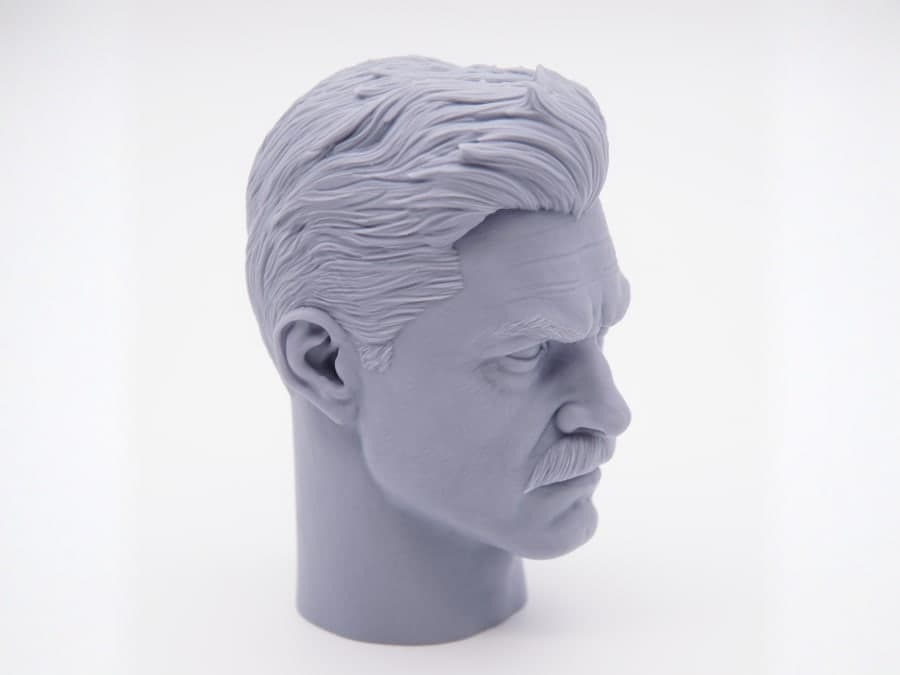

High-Detail resin is ideal for objects that will be displayed, such as prototypes, models, or figurines. Thanks to the combination of the material and the printing method, incredibly fine details and a smooth surface can be delivered, with this variety of resin offering a particularly high resolution that is perfect for jewelry and miniature figurines.

Print with High-Detail Resin

Mechanical Properties

Tensile strength32–86 MPa

Tensile modulus1600–2800 MPa

Elongation7–13 %

Flexural strength51–93 MPa

Flexural modulus2200–2700 MPa

Density1.2 g/cm³

Thermal

Heat deflection at 66 PSI48–70 °C

Print Constraints

Maximum build volume

1700 × 800 × 650 mm

Default layer height0.025 mm

Default infill100%

Min embossing0.2 mm

Min engraving0.2 mm

Accuracy± 0.1 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard Smooth

40 colors

Solid high detail Resin with a smooth surface.

Electroplated

4 colors

Electroplating is a process where a thin layer of metal is applied to plastic surfaces to enhance durability, corrosion resistance, and electrical conductivity.

Electroplated Colored

5 colors

The finish provides a glossy, metallic appearance with vibrant colors, offering enhanced durability, corrosion resistance, and aesthetic appeal for decorative and functional parts.
