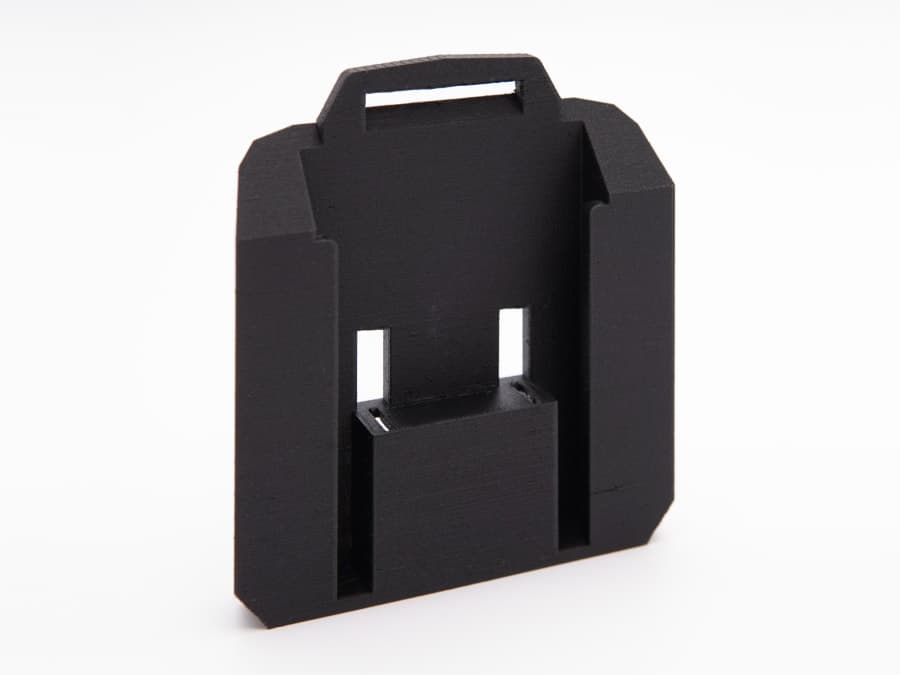

GreenTec Pro Carbon

Composites

Heat resistantUV resistantFunctionalStrong

GreenTEC Pro Carbon is a fibre reinforced organic material and offers exceptional mechanical properties and creates very hard and stiff models that can withstand high loads while being light-weight. The fibre content also improves the heat resistance (VICAT) & the HDT value of the material under load. The material is also resistant to UV rays making it a good option for parts that need to be used outdoors.

Print with GreenTec Pro Carbon

Mechanical Properties

Tensile strength65 MPa

Tensile modulus7120 MPa

Elongation2.5 %

Density1.2 g/cm³

Print Constraints

Maximum build volume

601 × 601 × 601 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard Matte

1 color

Matte layered finish.

Sanded

1 color

Smooth sanded finish.
