Flexible Resin

Flexible Plastics

FlexibleHigh detailVisualSmooth

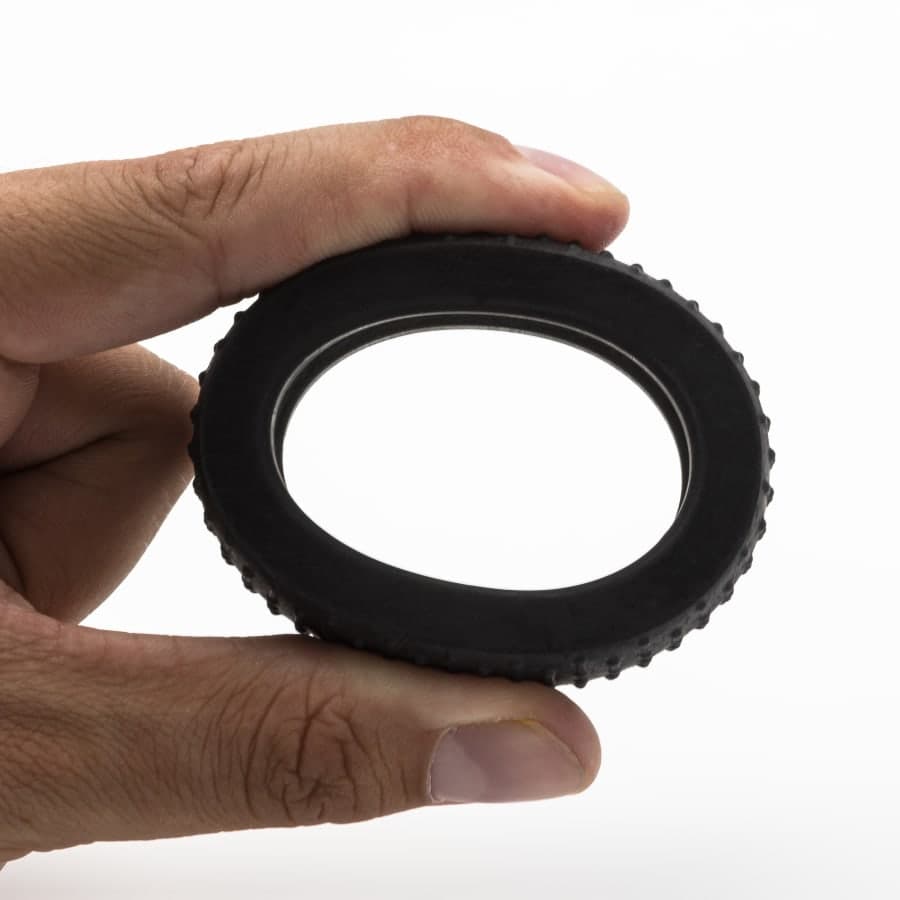

Flexible resin is suitable for detailed parts that also need to be flexible. This material has an 80A Shore hardness rating for more rigid, flexible parts with a soft-touch finish. Flexible resin can be used to create ergonomic features as part of larger assemblies.

Print with Flexible Resin

Mechanical Properties

Tensile strength7.7–13 MPa

Tensile modulus200–800 MPa

Elongation85–255 %

Density1.1 g/cm³

Thermal

Heat deflection at 66 PSI40–80 °C

Print Constraints

Maximum build volume

650 × 500 × 500 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.3 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard (Shore A80-A90)

17 colors

SLA printed Rubber-like parts featuring a 80-90A shore hardness, which is similar to skate wheels.

Standard (Shore A60-A80)

17 colors

SLA printed rubber-like parts featuring a A60-A80 Shore hardness, which is similar to a tire tread.
