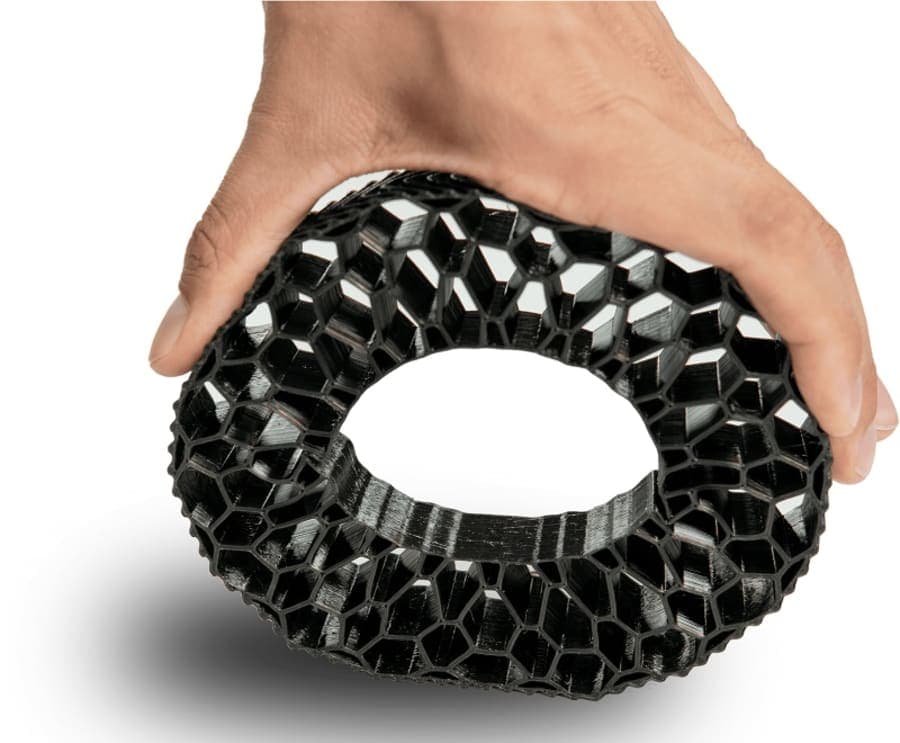

FDM TPE

Flexible Plastics

Impact resistantDurableFlexibleChemical resistant

FDM TPE (Thermoplastic Elastomer) is a versatile 3D printing material known for its rubber-like flexibility and durability. It offers various forms of elasticity, allowing extensive stretching and returning to its original shape, making it ideal for parts like seals, gaskets, and grips. TPE is also suited for applications within the food sector and in medical applications where skin contact is needed. TPE absorbs shocks, resists chemicals and UV light, and is excellent for applications needing high flexibility and resilience.

Print with FDM TPE

Mechanical Properties

Tensile strength5–30 MPa

Tensile modulus10–150 MPa

Elongation200–600 %

Flexural strength10–20 MPa

Flexural modulus20–60 MPa

Density1.15 g/cm³

Thermal

Heat deflection at 66 PSI50–70 °C

Print Constraints

Maximum build volume

600 × 600 × 600 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.4 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Medium (Shore A81-A90)

19 colors

Provides moderate hardness, commonly used in many general-purpose applications, such as wearable devices, phone cases.

Medium Soft (Shore A71-A80)

7 colors

Offers a balance of softness and support. It is ideal for semi-rigid grips, flexible enclosures, and moderate cushioning.

Medium Hard (Shore A91-A100)

6 colors

Higher rigidity while maintaining some flexibility. Useful for Mechanical parts, impact-resistant components.

Soft (Shore A61-A70)

7 colors

These materials offer significant flexibility and a soft texture.

Hard (Shore D30-D50)

18 colors

For applications requiring significant rigidity and less flexibility, such as structural parts and stiff enclosures.
