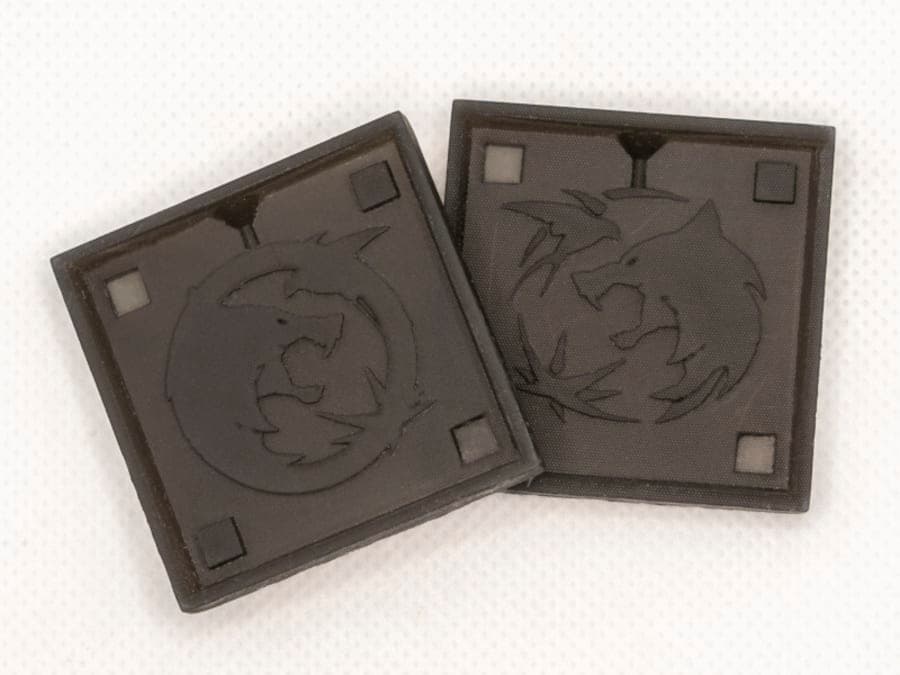

EnvisionTEC E-Mould

Functional Resins

SmoothVisualFunctional

EnvisionTEC's E-Mould provides a new solution for injection molding with a validated process chain. Traditional tooling in the workflow can be replaced or supplemented for a faster market launch or immediate design changes, and it is the ideal answer for short series' production and just-in-time tools at a fraction of the cost without the need for wasting space to store expensive tools. Validated for a variety of injection materials such as PP, PPGF30, PBT, TPE-S, ABS, PE, POM, and more.

Print with EnvisionTEC E-Mould

Mechanical Properties

Tensile strength87 MPa

Tensile modulus3560 MPa

Elongation4.6 %

Flexural strength134 MPa

Flexural modulus3360 MPa

Density1.14 g/cm³

Print Constraints

Maximum build volume

180 × 101 × 175 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Solid Resin, smooth surface with a high level of detail.
