Castable Wax Resin

Functional Resins

FunctionalHigh detailVisual

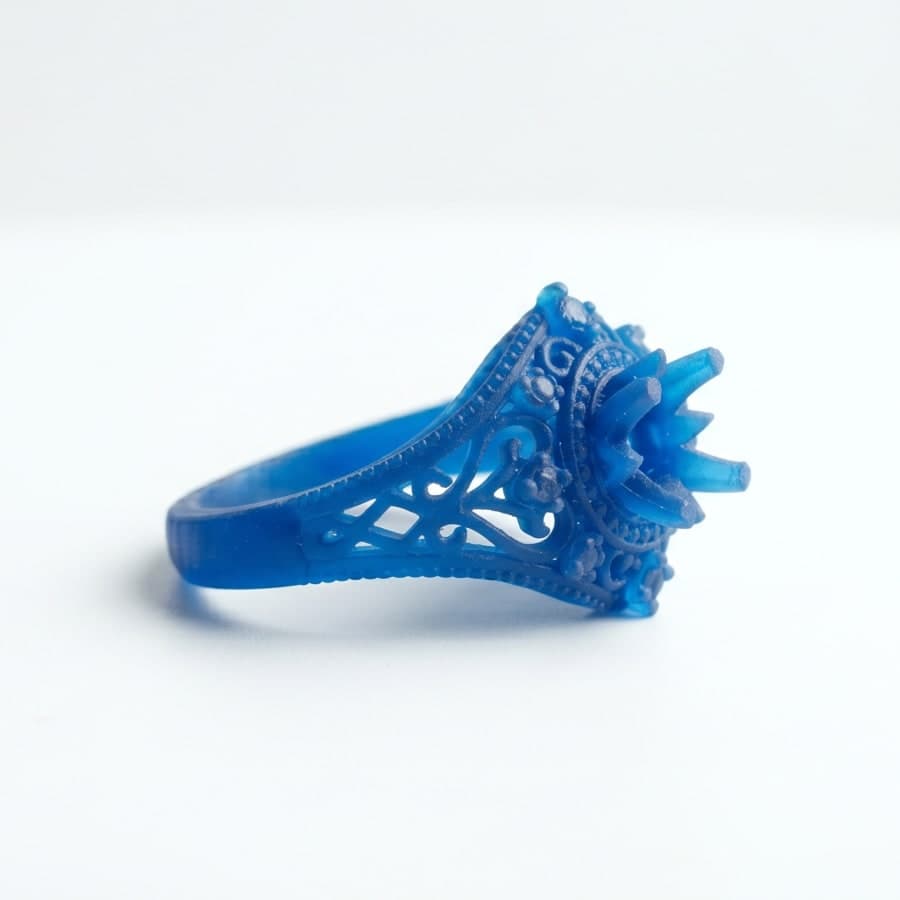

Castable wax resin is a specialized photopolymer that contains up to 20% wax, and is custom-engineered for high-precision direct investment casting workflows. It is highly valued in jewelry manufacturing and dental prosthetics for its exceptional green strength, allowing it to accurately capture ultrafine details without losing shape. The material features an ash-free burnout process that minimizes casting defects.

Print with Castable Wax Resin

Mechanical Properties

Tensile strength11.6–60 MPa

Tensile modulus220–2750 MPa

Elongation8–13 %

Flexural strength92–105 MPa

Flexural modulus2450–2700 MPa

Density1.2 g/cm³

Print Constraints

Maximum build volume

140 × 140 × 180 mm

Default layer height0.05 mm

Default infill100%

Min embossing0.2 mm

Min engraving0.2 mm

Accuracy± 0.4 mm

Warping riskLow

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

2 colors

A standard finish castable wax resin part features an ultra-smooth, matte-to-semi-gloss surface with exceptional clarity on fine details.
