Castable Wax

Castable Wax

Others
VisualSmooth

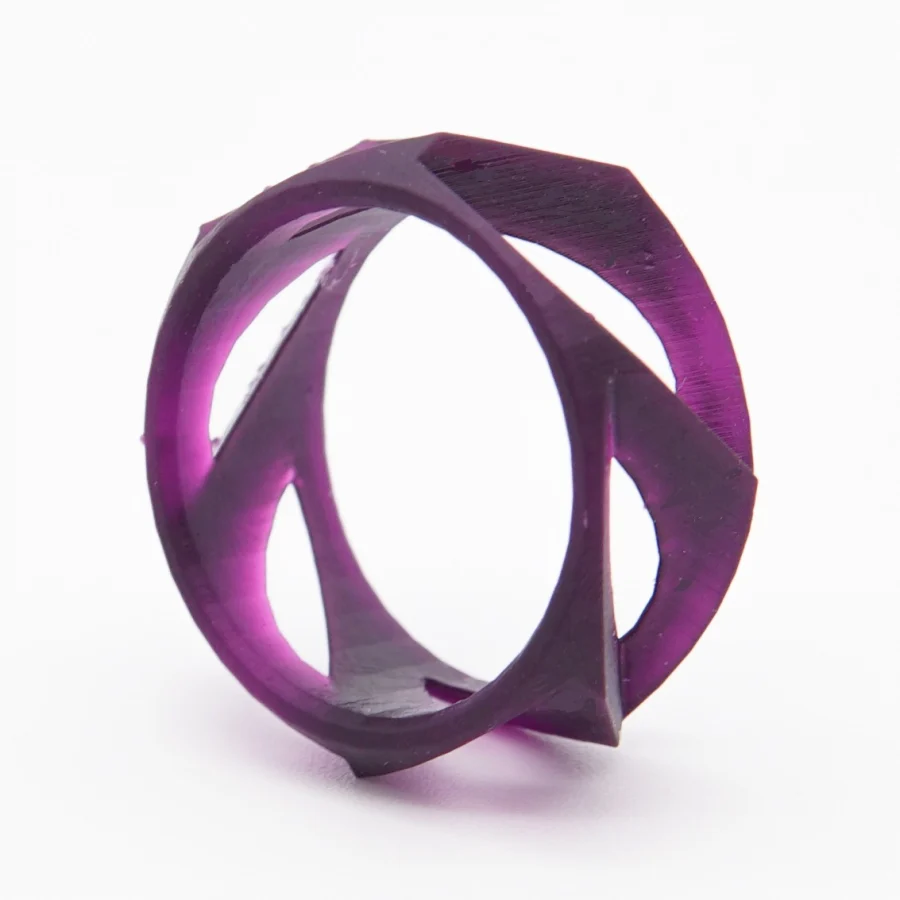

Castable wax is composed almost entirely of wax, closely matching the burnout behavior jewelers and casters have relied on with traditional hand-carved wax patterns. It typically requires specialized wax-jetting printers rather than standard resin printers, which makes it more expensive than resin-based alternatives. In exchange, it offers the cleanest possible burnout with essentially no ash residue, along with excellent surface finish and fine detail reproduction. Castable wax suits high-end jewelry, intricate filigree, and precision castings where the truest possible wax-like results justify the added cost and specialized equipment.

Print with Castable Wax
Mechanical Properties
Tensile strength11.6 MPa
Tensile modulus220 MPa
Elongation13 %
Density1.178 g/cm³
Print Constraints

Maximum build volume

320 × 320 × 280 mm

Min wall thicknessMJM 0.2 mm, MJP 0.8 mm
Min detail size0.3 mm
Default layer height0.025 mm
Default infill100%
Min embossing0.4 mm
Min engraving0.4 mm
Accuracy± 0.4 mm
Warping riskLow
Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

Standard

3 colors

Castable wax parts have a smooth surface with fine detail, consistent with other wax-filled casting resins.
