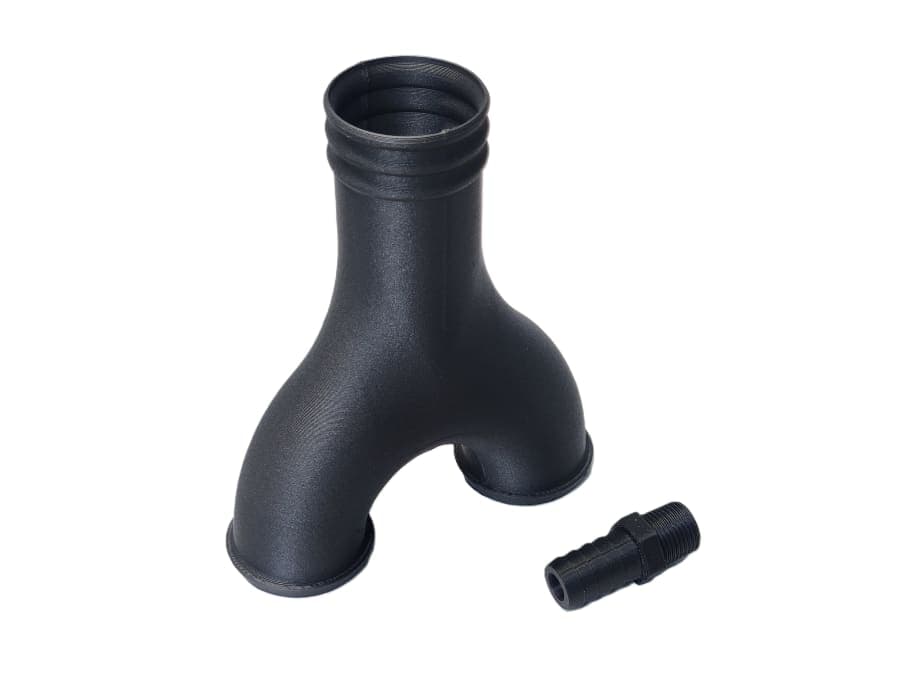

Carbon Fiber ULTEM 9085

Composites

Chemical resistantHeat resistantStrongFlame retardant

Carbon-reinforced ULTEM 9085 contains short carbon fibers, which make the material even stiffer and stronger than normal ULTEM 9085. Thermal properties remain similar to normal ULTEM 9085.

Print with Carbon Fiber ULTEM 9085

Mechanical Properties

Tensile strength68–93 MPa

Tensile modulus2520–8600 MPa

Elongation1.6–5.5 %

Flexural strength105–540 MPa

Flexural modulus2450–8450 MPa

Density1.39 g/cm³

Thermal

Heat deflection at 66 PSI175–190 °C

Heat deflection at 264 PSI173–190 °C

Print Constraints

Maximum build volume

650 × 500 × 500 mm

Default layer height0.25 mm

Default infill20%

Min embossing0.6 mm

Min engraving0.6 mm

Accuracy± 0.4 mm

Warping riskOver_140_mm

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered finish.

Sanded

1 color

Smooth sanded finish.
