Material
Carbon Fiber PPS

Carbon Fiber PPS

Engineering Plastics
StrongHeat resistantFlame retardantChemical resistant

PPS-CF for FDM 3D printing is a specialized composite engineered for the most demanding environments. The addition of carbon fiber to the semi-crystalline PPS base significantly increases tensile strength and stiffness while reducing the material's natural tendency to warp during printing. It maintains mechanical integrity at temperatures up to 220 °C and is virtually unaffected by fuels, solvents, and strong acids. Its low moisture absorption and high dimensional stability make it a viable alternative to aluminum for lightweight jigs, fixtures, and end-use automotive parts.

Print with Carbon Fiber PPS
Mechanical Properties
Tensile strength70–90 MPa
Tensile modulus2700–11000 MPa
Elongation1–2.5 %
Flexural strength110–140 MPa
Flexural modulus2400–9500 MPa
Density1.28 g/cm³
Print Constraints

Maximum build volume

340 × 320 × 340 mm

Default layer height0.2 mm
Default infill20%
Min embossing0.8 mm
Min engraving0.8 mm
Accuracy± 0.3 mm
Warping riskModerate
Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

Standard

1 color

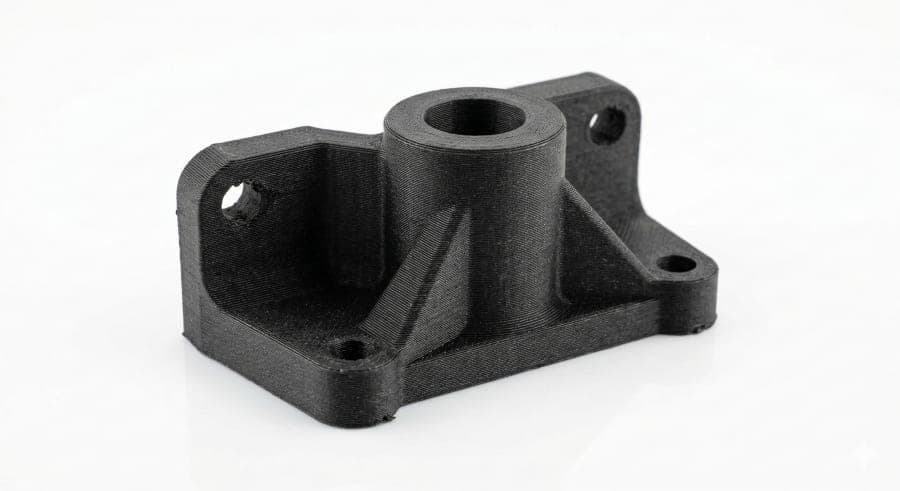

Standard PPS-CF parts feature a matte charcoal finish with visible layer textures and a micro-fibrous sheen.

Sanded

Sanded

1 color

Sanded FDM PPS-CF offers the extreme thermal and chemical resistance of PPS with a refined, smooth surface. Sanding removes layer lines, improving dimensional accuracy for mating parts and providing a sleek, professional matte appearance.
