Precious MetalsVisualHigh detail

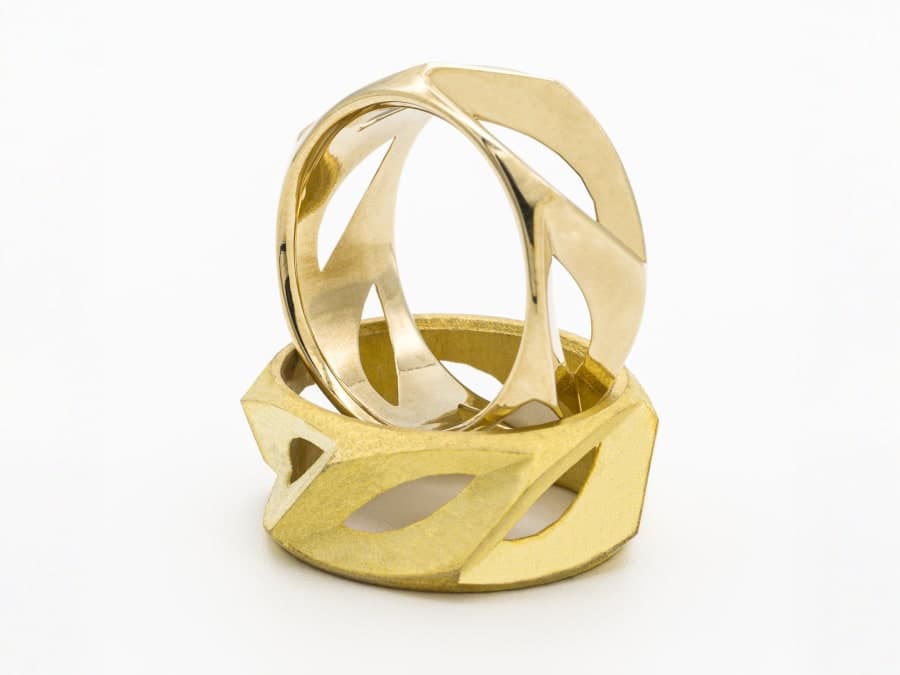

Brass

Brass is good for jewelry and jewelry prototypes. When polished, brass is smooth and shiny and when unpolished, it is matte, rough, and antique in appearance. Brass tarnishes over time and may need to be polished. It is 3D printed in multiple steps. First, in high resolution wax. A mold of liquid plaster is made using the wax model, and afterwards it is injection-molded. Brass consists of 15% zinc, 5% tin, and 80% copper.

Print with Brass

Mechanical Properties

Tensile strength300–422 MPa

Tensile modulus110000–1200000 MPa

Elongation15–62 %

Flexural strength400–600 MPa

Flexural modulus110000–120000 MPa

Density8.62 g/cm³

Thermal

Heat deflection at 66 PSI

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Raw Brass with an antique look and feel. The surface finish is matte and slightly granular.

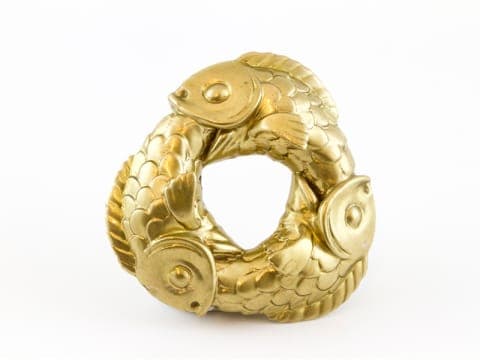

Standard PU Coated

1 color

Raw brass with a PU coating to slow down oxidation. Slightly smoother than the standard finish.

All materials

Print Constraints

Maximum build volume

270 × 270 × 270 mm

Default layer height0.025 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 5 mm

Warping riskOver_140_mm

Interlocking partsSupported

Brass

Available finishes

Standard

Standard PU Coated

Polished
