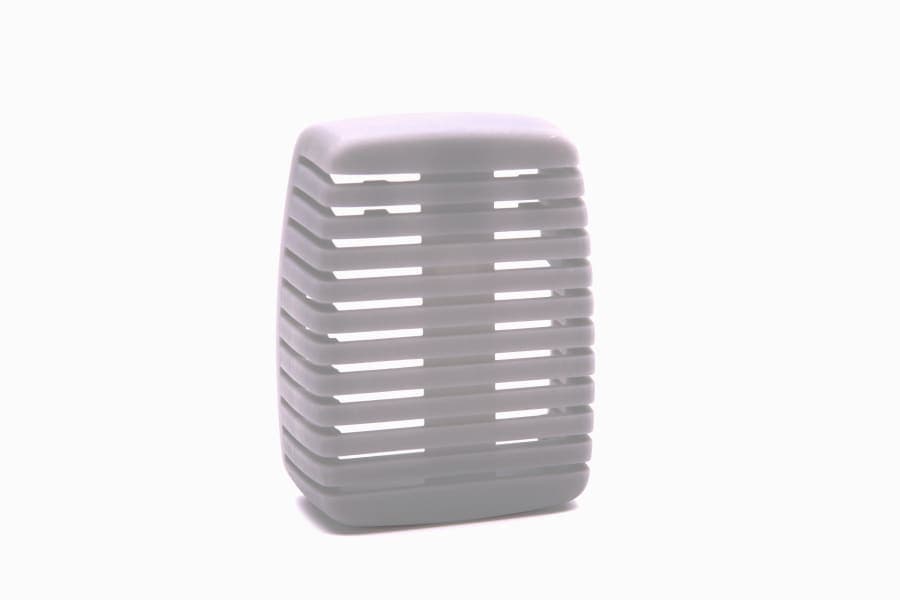

Accura® Xtreme

Functional Resins

High detailDurableFunctionalVisual

Fast and easy to process, the Accura Xtreme material offers physical properties that are close enough to durable end-use plastics like ABS and polypropylene to make it ideal for functioning prototypes in demanding applications. It is also commonly used for short-run production projects. Accura Xtreme is a gray plastic with the appearance of a final production part with outstanding durability, impact resistance, accuracy, and a thermal resistance of over 60 °C.

Print with Accura® Xtreme

Mechanical Properties

Tensile strength38–50 MPa

Tensile modulus1790–2630 MPa

Elongation14–22 %

Flexural strength52–79 MPa

Flexural modulus1520–2550 MPa

Density1.19 g/cm³

Thermal

Heat deflection at 66 PSI54–62 °C

Heat deflection at 264 PSI42–54 °C

Print Constraints

Maximum build volume

650 × 750 × 550 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

13 colors

Untreated Accura Extreme with a smooth surface.
